Device Firmware Update (DFU)

Bluetooth Mesh supports the distribution of firmware images across a mesh network. The Bluetooth mesh DFU subsystem implements the Bluetooth Mesh Device Firmware Update Model Specification version 1.0. The implementation is in experimental state.

The Bluetooth Mesh DFU implements a distribution mechanism for firmware images without any restrictions on the size, format, or usage of the images. The primary design goal of the subsystem is to provide a compliant portion of the Bluetooth Mesh DFU specification and leave the usage, firmware validation, and deployment to the application.

The DFU specification is implemented in the WM IoT SDK Bluetooth Mesh DFU subsystem as three separate models:

• Firmware Update Server
• Firmware Update Client
• Firmware Distribution Server

Overview

DFU Roles

The Bluetooth Mesh DFU subsystem defines three different roles the mesh nodes have to assume in the distribution of firmware images:

Target Node

Target node is the receiver and user of the transferred firmware images. All its functions are implemented by the Firmware Update Server model. The transmission can target any number of target nodes, and they will all update simultaneously.

Distributor

The Distributor role serves two purposes in the DFU process. Firstly, it’s acting as the target node in the Upload Firmware procedure, then it distributes the uploaded image to other Target nodes as the Distributor. The distributor server does not select the parameters of the transfer, but relies on an initiator to give it a list of target nodes and transmission parameters. The distributor functionality is implemented in two models, Firmware Distribution Server and Firmware Update Client. The Firmware Distribution Server is responsible for communicating with the Initiator, and the Firmware Update Client is responsible for distributing the image to the Target nodes.

Initiator

The Initiator role is typically implemented by the same device that implements the Bluetooth Mesh Provisioner and Configurator roles. The Initiator needs a complete overview of the potential target nodes and their firmware, and will control (and initiate) all firmware updates. The Initiator role is not implemented in the WM IoT SDK Bluetooth Mesh DFU subsystem.

DFU Roles and the Associated Bluetooth Mesh Models

Bluetooth Mesh applications may combine the DFU roles in any way they’d like, and even take on multiple instances of the same role by instantiating the models on separate elements. For instance, the distributor and initiator roles can be combined by instantiating the Firmware Update Client on the initiator node and calling its API directly.

It’s also possible to combine the initiator and distributor devices into a single device, and replace the Firmware Distribution Server model with a proprietary mechanism(such as over a serial protocol) that will access the Firmware Update Client model directly.

Note

All DFU models instantiate one or more BLOB Transfer Model, and may need to be spread over multiple elements for certain role combinations.

Stages

The Bluetooth Mesh DFU process is designed to act in three stages:

Upload Stage

Firstly, the image is uploaded from an external entity (such as a phone or gateway, which acts as the initiator) to a distributor in the mesh network. During the upload stage, the initiator transfers the firmware image and all its metadata to the distributor node within the mesh network. The distributor permanently stores the firmware image and its metadata and waits for further instructions from the initiator. The time required to complete the upload process depends on the size of the image. Once the upload is complete, the initiator can disconnect from the network during the more time-consuming distribution stage. Once the firmware is uploaded to the distributor, the initiator can trigger the distribution stage at any time.

Firmware Capability Check Stage (Optional)

Before initiating the distribution stage, the initiator can optionally choose to check if the target nodes can accept the new firmware. Nodes that do not respond or respond that they cannot receive the new firmware will be excluded from the firmware distribution process.

Distribution Stage

Before the firmware image can be distributed, the Initiator transfers the list of Target nodes and their designated firmware image index to the Distributor. Next, it tells the Distributor to start the firmware distributon process, which runs in the background while the Initiator and the mesh network perform other duties. Once the firmware image has been transferred to the Target nodes, the Distributor may ask them to apply the firmware image immediately and report back with their status and new firmware IDs.

Firmware Images

All updatable parts of a mesh node’s firmware should be represented as a firmware image. Each Target node holds a list of firmware images, each of which should be independently updatable and identifiable.

Firmware images are represented as a BLOB (the firmware itself) with the following additional information attached to it:

Firmware ID

The firmware ID is used to identify a firmware image. The Initiator node may ask the target nodes for a list of its current firmware IDs to determine whether a newer version of the firmware is available. The format of the firmware ID is vendor specific, but generally, it should include enough information for an initiator node with knowledge of the format to determine the type of image as well as its version. The firmware ID is optional, and its maximum length is determined by CONFIG_BT_MESH_DFU_FWID_MAXLEN.

Firmware Metadata

Target nodes use firmware metadata to determine whether to accept an incoming firmware update and the effects of the update. The metadata format is vendor-specific and should contain all the information required by the target node to validate the image, as well as any preparations that the target node must perform before applying the image. Typical metadata information can be image signatures, changes to the node’s composition data, and the format of the BLOB. The target node can perform a metadata check before accepting an incoming transfer to determine whether the transfer should be initiated. After the metadata check, the target node can discard the firmware metadata since other nodes will never request metadata from the target node. Firmware metadata is optional, and its maximum length is determined by``CONFIG_BT_MESH_DFU_METADATA_MAXLEN``.

The Bluetooth Mesh DFU subsystem in WM IoT SDK provides its own metadata format (bt_mesh_dfu_metadata) together with a set of related functions that can be used by an end product. The support for it is enabled using the CONFIG_BT_MESH_DFU_METADATA option. The format of the metadata is presented in the table below.

Field	Size (Bytes)	Description
New firmware version	8 B	1 B: Major version 1 B: Minor version 2 B: Revision 4 B: Build number
New firmware size	3 B	Size in bytes for a new firmware
New firmware core type	1 B	Bit field: Bit 0: Application core Bit 1: Network core Bit 2: Applications specific BLOB. Other bits: RFU
Hash of incoming composition data	4 B (Optional)	Lower 4 octets of AES-CMAC (app-specific-key, composition data). This field is present, if Bit 0 is set in the New firmware core type field.
New number of elements	2 B (Optional)	Number of elements on the node after firmware is applied. This field is present, if Bit 0 is set in the New firmware core type field.
Application-specific data for new firmware	<variable> (Optional)	Application-specific data to allow application to execut some vendor-specific behaviors using this data before it can respond with a status message.

Firmware URI

The firmware URI gives the Initiator information about where firmware updates for the image can be found. The URI points to an online resource the Initiator can interact with to get new versions of the firmware. This allows Initiators to perform updates for any node in the mesh network by interacting with the web server pointed to in the URI. The URI must point to a resource using the http or https schemes, and the targeted web server must behave according to the Firmware Check Over HTTPS procedure defined by the specification. The firmware URI is optional, and its max length is determined by CONFIG_BT_MESH_DFU_URI_MAXLEN.

Note

The out-of-band distribution mechanism is not supported.

Firmware Effects

A new image can have a different composition data page than Composition Data Page 0 assigned on the target node. This may affect the node’s configuration data and how the distributor terminates DFU. Depending on the availability of the Remote Configuration Server model on both the old and new images, the device may start unconfigured after applying the new firmware or may require reconfiguration. The full list of available options is defined in bt_mesh_dfu_effect:

BT_MESH_DFU_EFFECT_NONE

After programming the new firmware, the device remains provisioned. This effect is selected if the composition data of the new firmware has not changed.

BT_MESH_DFU_EFFECT_COMP_CHANGE_NO_RPR

This effect is chosen when the composition data changes and the device doesn’t support the remote provisioning. The new composition data takes place only after re-provisioning.

BT_MESH_DFU_EFFECT_COMP_CHANGE

This effect is chosen when the composition data changes and the device supports the remote provisioning. In this case, the device stays provisioned and the new composition data takes place after re-provisioning using the Remote Provisioning models.

BT_MESH_DFU_EFFECT_UNPROV

This effect is chosen if the composition data in the new firmware changes, the device doesn’t support the remote provisioning, and the new composition data takes effect after applying the firmware.

When the Target node receives the Firmware Update Firmware Metadata Check message, the Firmware Update Server model calls the bt_mesh_dfu_srv_cb.check callback, the application can then process the metadata and provide the effect value. If the effect is BT_MESH_DFU_EFFECT_COMP_CHANGE, the application must call functions bt_mesh_comp_change_prepare() and bt_mesh_models_metadata_change_prepare() to prepare the Composition Data Page and Models Metadata Page contents before applying the new firmware image. See Composition Data and Models Metadata for more information.

DFU Procedure

The DFU protocol is implemented as a set of procedures that must be performed in a certain order.

The Initiator controls the Upload stage of the DFU protocol, and all Distributor side handling of the upload subprocedures is implemented in the Firmware Distribution Server.

The Distribution stage is controlled by the distributorand implemented in the Firmware Update Client. The target nodes implements all handling of these procedures in the Firmware Update Server, and notifies the application through a set of callbacks.

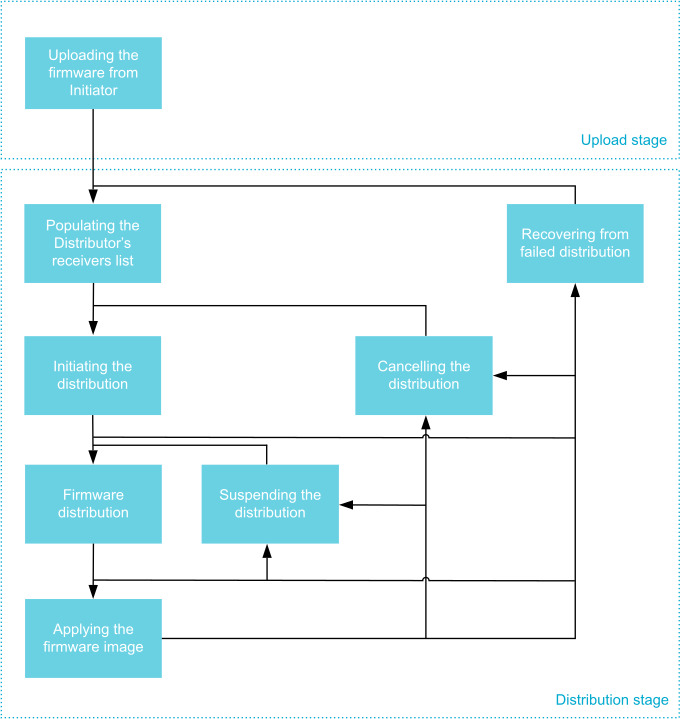

DFU stages and procedures as seen from the Distributor

Uploading the Firmware

The Upload Firmware procedure uses the BLOB Transfer Model to transfer the firmware image from the Initiator to the Distributor. The Upload Firmware procedure works in two steps:

1. The Initiator generates a BLOB ID, and sends it to the Distributor’s Firmware Distribution Server along with the firmware information and other input parameters of the BLOB transfer. The Firmware Distribution Server stores the information, and prepares its BLOB Transfer Server for the incoming transfer before it responds with a status message to the Initiator.

2. The Initiator’s BLOB Transfer Client model transfers the firmware image to the Distributor’s BLOB Transfer Server, which stores the image in a predetermined flash partition.

When the BLOB transfer finishes, the firmware image is ready for distribution. The Initiator may upload several firmware images to the distributor, and ask it to distribute them in any order or at any time. Additional procedures are available for querying and deleting firmware images from the distributor.

The following functions related to firmware images can be configured with configuration options:

• CONFIG_BT_MESH_DFU_SLOT_CNT: The number of image slots available on the device.

• CONFIG_BT_MESH_DFD_SRV_SLOT_MAX_SIZE: The maximum size allowed for each image.

• CONFIG_BT_MESH_DFD_SRV_SLOT_SPACE: The available space for all images.

Populating the Distributor’s Receivers List

Before the Distributor can start distributing the firmware image, it needs a list of Target nodes to send the image to. The Initiator gets the full list of Target nodes either by querying the potential targets directly, or through some external authority. The Initiator uses this information to populate the Distributor’s receivers list with the address and relevant firmware image index of each Target node. The Initiator may send one or more Firmware Distribution Receivers Add messages to build the distributor’s receivers list, and a Firmware Distribution Receivers Delete All message to clear it.

The maximum number of receivers that can be added to the Distributor is configured through the CONFIG_BT_MESH_DFD_SRV_TARGETS_MAX configuration option.

Initiating the Distribution

Once the distributor has stored the firmware image and received the list of target nodes, the initiator can start the distribution process. The BLOB transfer parameters for the distribution, along with the update strategy, are passed to the distributor. The update strategy determines whether the distributor should request the application of the firmware on the target nodes. The distributor stores the transfer parameters and starts distributing the firmware image to its list of target nodes.

Firmware Distribution

The firmware update client model of the distribution server communicates with all target nodes using its BLOB transfer client model’s broadcast subsystem. Firmware distribution is executed through the following steps:

1. The firmware update client model of the distribution server generates a BLOB ID and sends it to the firmware update server model of each target node, along with other BLOB transfer parameters, the target node firmware image index, and firmware image metadata. Each target node performs a metadata check, prepares its BLOB transfer server model for the transfer, and then sends a status response to the firmware update client indicating whether the firmware update will have any impact on the node’s Bluetooth Mesh state.

2. The BLOB transfer client model of the distribution server transfers the firmware image to all target nodes.

3. Once the BLOB transfer is received, the application at the target nodes validates the firmware by performing checks such as signature verification or image checksum on the image metadata.

4. The firmware update client model of the distribution server queries all target nodes to ensure they have validated the firmware image.

If the distribution process completes and at least one target node reports having received and validated the image, the distribution process is considered successful.

Note

The firmware distribution procedure only fails if all Target nodes are lost. It is up to the Initiator to request a list of failed Target nodes from the Distributor and initiate additional attempts to update the lost Target nodes after the current attempt is finished.

Suspending Distribution

The initiator can also request the distribution server to suspend the firmware distribution. In this case, the distribution server will stop sending any messages to the target nodes. When the firmware distribution is resumed, the distribution server will continue sending firmware from the last successfully transferred block.

Applying Firmware Image

If requested by the initiator, the distribution server can initiate the process of applying the firmware on the target nodes at all target nodes that have successfully received and validated the firmware image. The process of applying firmware on target nodes requires no parameters and, to avoid ambiguity, should be executed before initiating a new transfer. The process of applying firmware on target nodes consists of the following steps:

1. The firmware update client model of the distribution server instructs all target nodes with validated firmware images to apply them. The firmware update server model at the target nodes responds with status messages before invoking its application’s apply callback.

2. The application at the target nodes performs any required preparations before applying the transfer, such as taking snapshots of stored synthetic data or clearing its configurations.

3. The application at the target nodes swaps the current firmware with the new image and updates its firmware image list with the new firmware ID.

4. The firmware update client model of the distribution server requests a complete list of firmware images from each target node and scans the list to ensure that the new firmware ID has replaced the old one.

Note

During metadata checks during the distribution process, target nodes may report that they will become unconfigured after applying the firmware image. In this case, the firmware update client model of the distribution server will send a request for the complete firmware image list and expects no response..

Cancelling Distribution

The firmware distribution can be cancelled at any time by the Initiator. In this case, the distribution server initiates the cancellation process by sending cancel messages to all target nodes. The distribution server waits for responses from all target nodes. Once all target nodes have responded or the request has timed out, the distribution process is canceled. After this, the distribution process can be initiated again from the Firmware Distribution section.

API Reference

This section lists the types common to the Device Firmware Update mesh models.

group bt_mesh_dfd

Enums

enum bt_mesh_dfd_status

Firmware distribution status.

Values:

enumerator BT_MESH_DFD_SUCCESS

The message was processed successfully.

enumerator BT_MESH_DFD_ERR_INSUFFICIENT_RESOURCES

Insufficient resources on the node.

enumerator BT_MESH_DFD_ERR_WRONG_PHASE

The operation cannot be performed while the Server is in the current phase.

enumerator BT_MESH_DFD_ERR_INTERNAL

An internal error occurred on the node.

enumerator BT_MESH_DFD_ERR_FW_NOT_FOUND

The requested firmware image is not stored on the Distributor.

enumerator BT_MESH_DFD_ERR_INVALID_APPKEY_INDEX

The AppKey identified by the AppKey Index is not known to the node.

enumerator BT_MESH_DFD_ERR_RECEIVERS_LIST_EMPTY

There are no Target nodes in the Distribution Receivers List state.

enumerator BT_MESH_DFD_ERR_BUSY_WITH_DISTRIBUTION

Another firmware image distribution is in progress.

enumerator BT_MESH_DFD_ERR_BUSY_WITH_UPLOAD

Another upload is in progress.

enumerator BT_MESH_DFD_ERR_URI_NOT_SUPPORTED

The URI scheme name indicated by the Update URI is not supported.

enumerator BT_MESH_DFD_ERR_URI_MALFORMED

The format of the Update URI is invalid.

enumerator BT_MESH_DFD_ERR_URI_UNREACHABLE

The URI is currently unreachable.

enumerator BT_MESH_DFD_ERR_NEW_FW_NOT_AVAILABLE

The Check Firmware OOB procedure did not find any new firmware.

enumerator BT_MESH_DFD_ERR_SUSPEND_FAILED

The suspension of the Distribute Firmware procedure failed.

enum bt_mesh_dfd_phase

Firmware distribution phases.

Values:

enumerator BT_MESH_DFD_PHASE_IDLE

No firmware distribution is in progress.

enumerator BT_MESH_DFD_PHASE_TRANSFER_ACTIVE

Firmware distribution is in progress.

enumerator BT_MESH_DFD_PHASE_TRANSFER_SUCCESS

The Transfer BLOB procedure has completed successfully.

enumerator BT_MESH_DFD_PHASE_APPLYING_UPDATE

The Apply Firmware on Target Nodes procedure is being executed.

enumerator BT_MESH_DFD_PHASE_COMPLETED

The Distribute Firmware procedure has completed successfully.

enumerator BT_MESH_DFD_PHASE_FAILED

The Distribute Firmware procedure has failed.

enumerator BT_MESH_DFD_PHASE_CANCELING_UPDATE

The Cancel Firmware Update procedure is being executed.

enumerator BT_MESH_DFD_PHASE_TRANSFER_SUSPENDED

The Transfer BLOB procedure is suspended.

enum bt_mesh_dfd_upload_phase

Firmware upload phases.

Values:

enumerator BT_MESH_DFD_UPLOAD_PHASE_IDLE

No firmware upload is in progress.

enumerator BT_MESH_DFD_UPLOAD_PHASE_TRANSFER_ACTIVE

The Store Firmware procedure is being executed.

enumerator BT_MESH_DFD_UPLOAD_PHASE_TRANSFER_ERROR

The Store Firmware procedure or Store Firmware OOB procedure failed.

enumerator BT_MESH_DFD_UPLOAD_PHASE_TRANSFER_SUCCESS

The Store Firmware procedure or the Store Firmware OOB procedure completed successfully.

group bt_mesh_dfu

Defines

CONFIG_BT_MESH_DFU_FWID_MAXLEN

CONFIG_BT_MESH_DFU_METADATA_MAXLEN

CONFIG_BT_MESH_DFU_URI_MAXLEN

CONFIG_BT_MESH_DFU_SLOT_CNT

Enums

enum bt_mesh_dfu_phase

DFU transfer phase.

Values:

enumerator BT_MESH_DFU_PHASE_IDLE

Ready to start a Receive Firmware procedure.

enumerator BT_MESH_DFU_PHASE_TRANSFER_ERR

The Transfer BLOB procedure failed.

enumerator BT_MESH_DFU_PHASE_TRANSFER_ACTIVE

The Receive Firmware procedure is being executed.

enumerator BT_MESH_DFU_PHASE_VERIFY

The Verify Firmware procedure is being executed.

enumerator BT_MESH_DFU_PHASE_VERIFY_OK

The Verify Firmware procedure completed successfully.

enumerator BT_MESH_DFU_PHASE_VERIFY_FAIL

The Verify Firmware procedure failed.

enumerator BT_MESH_DFU_PHASE_APPLYING

The Apply New Firmware procedure is being executed.

enumerator BT_MESH_DFU_PHASE_TRANSFER_CANCELED

Firmware transfer has been canceled.

enumerator BT_MESH_DFU_PHASE_APPLY_SUCCESS

Firmware applying succeeded.

enumerator BT_MESH_DFU_PHASE_APPLY_FAIL

Firmware applying failed.

enumerator BT_MESH_DFU_PHASE_UNKNOWN

Phase of a node was not yet retrieved.

enum bt_mesh_dfu_status

DFU status.

Values:

enumerator BT_MESH_DFU_SUCCESS

The message was processed successfully.

enumerator BT_MESH_DFU_ERR_RESOURCES

Insufficient resources on the node

enumerator BT_MESH_DFU_ERR_WRONG_PHASE

The operation cannot be performed while the Server is in the current phase.

enumerator BT_MESH_DFU_ERR_INTERNAL

An internal error occurred on the node.

enumerator BT_MESH_DFU_ERR_FW_IDX

The message contains a firmware index value that is not expected.

enumerator BT_MESH_DFU_ERR_METADATA

The metadata check failed.

enumerator BT_MESH_DFU_ERR_TEMPORARILY_UNAVAILABLE

The Server cannot start a firmware update.

enumerator BT_MESH_DFU_ERR_BLOB_XFER_BUSY

Another BLOB transfer is in progress.

enum bt_mesh_dfu_effect

Expected effect of a DFU transfer.

Values:

enumerator BT_MESH_DFU_EFFECT_NONE

No changes to node Composition Data.

enumerator BT_MESH_DFU_EFFECT_COMP_CHANGE_NO_RPR

Node Composition Data changed and the node does not support remote provisioning.

enumerator BT_MESH_DFU_EFFECT_COMP_CHANGE

Node Composition Data changed, and remote provisioning is supported. The node supports remote provisioning and Composition Data Page 0x80. Page 0x80 contains different Composition Data than Page 0x0.

enumerator BT_MESH_DFU_EFFECT_UNPROV

Node will be unprovisioned after the update.

enum bt_mesh_dfu_iter

Action for DFU iteration callbacks.

Values:

enumerator BT_MESH_DFU_ITER_STOP

Stop iterating.

enumerator BT_MESH_DFU_ITER_CONTINUE

Continue iterating.

struct bt_mesh_dfu_img

DFU image instance.

Each DFU image represents a single updatable firmware image.

Public Members

const void *fwid

Firmware ID.

size_t fwid_len

Length of the firmware ID.

const char *uri

Update URI, or NULL.

struct bt_mesh_dfu_slot

DFU image slot for DFU distribution.

Public Members

size_t size

Size of the firmware in bytes.

size_t fwid_len

Length of the firmware ID.

size_t metadata_len

Length of the metadata.

uint8_t fwid[0]

Firmware ID.

uint8_t metadata[0]

Metadata.

group bt_mesh_dfu_metadata

Common types and functions for the Bluetooth mesh DFU metadata.

Enums

enum bt_mesh_dfu_metadata_fw_core_type

Firmware core type.

Values:

enumerator BT_MESH_DFU_FW_CORE_TYPE_APP

Application core.

enumerator BT_MESH_DFU_FW_CORE_TYPE_NETWORK

Network core.

enumerator BT_MESH_DFU_FW_CORE_TYPE_APP_SPECIFIC_BLOB

Application-specific BLOB.

Functions

int bt_mesh_dfu_metadata_decode(struct net_buf_simple *buf, struct bt_mesh_dfu_metadata *metadata)

Decode a firmware metadata from a network buffer.

Parameters:

• buf – Buffer containing a raw metadata to be decoded.

• metadata – Pointer to a metadata structure to be filled.

Returns:

0 on success, or (negative) error code otherwise.

int bt_mesh_dfu_metadata_encode(const struct bt_mesh_dfu_metadata *metadata, struct net_buf_simple *buf)

Encode a firmare metadata into a network buffer.

Parameters:

• metadata – Firmware metadata to be encoded.

• buf – Buffer to store the encoded metadata.

Returns:

0 on success, or (negative) error code otherwise.

int bt_mesh_dfu_metadata_comp_hash_get(struct net_buf_simple *buf, uint8_t *key, uint32_t *hash)

Compute hash of the Composition Data state.

The format of the Composition Data is defined in MshPRFv1.0.1, section 4.2.1.1.

Parameters:

• buf – Pointer to buffer holding Composition Data.

• key – 128-bit key to be used in the hash computation.

• hash – Pointer to a memory location to which the hash will be stored.

Returns:

0 on success, or (negative) error code otherwise.

int bt_mesh_dfu_metadata_comp_hash_local_get(uint8_t *key, uint32_t *hash)

Compute hash of the Composition Data Page 0 of this device.

Parameters:

• key – 128-bit key to be used in the hash computation.

• hash – Pointer to a memory location to which the hash will be stored.

Returns:

0 on success, or (negative) error code otherwise.

struct bt_mesh_dfu_metadata_fw_ver

Firmware version.

Public Members

uint8_t major

Firmware major version.

uint8_t minor

Firmware minor version.

uint16_t revision

Firmware revision.

uint32_t build_num

Firmware build number.

struct bt_mesh_dfu_metadata

Firmware metadata.

Public Members

struct bt_mesh_dfu_metadata_fw_ver fw_ver

New firmware version.

uint32_t fw_size

New firmware size.

enum bt_mesh_dfu_metadata_fw_core_type fw_core_type

New firmware core type.

uint32_t comp_hash

Hash of incoming Composition Data.

uint16_t elems

New number of node elements.

uint8_t *user_data

Application-specific data for new firmware. This field is optional.

uint32_t user_data_len

Length of the application-specific field.
